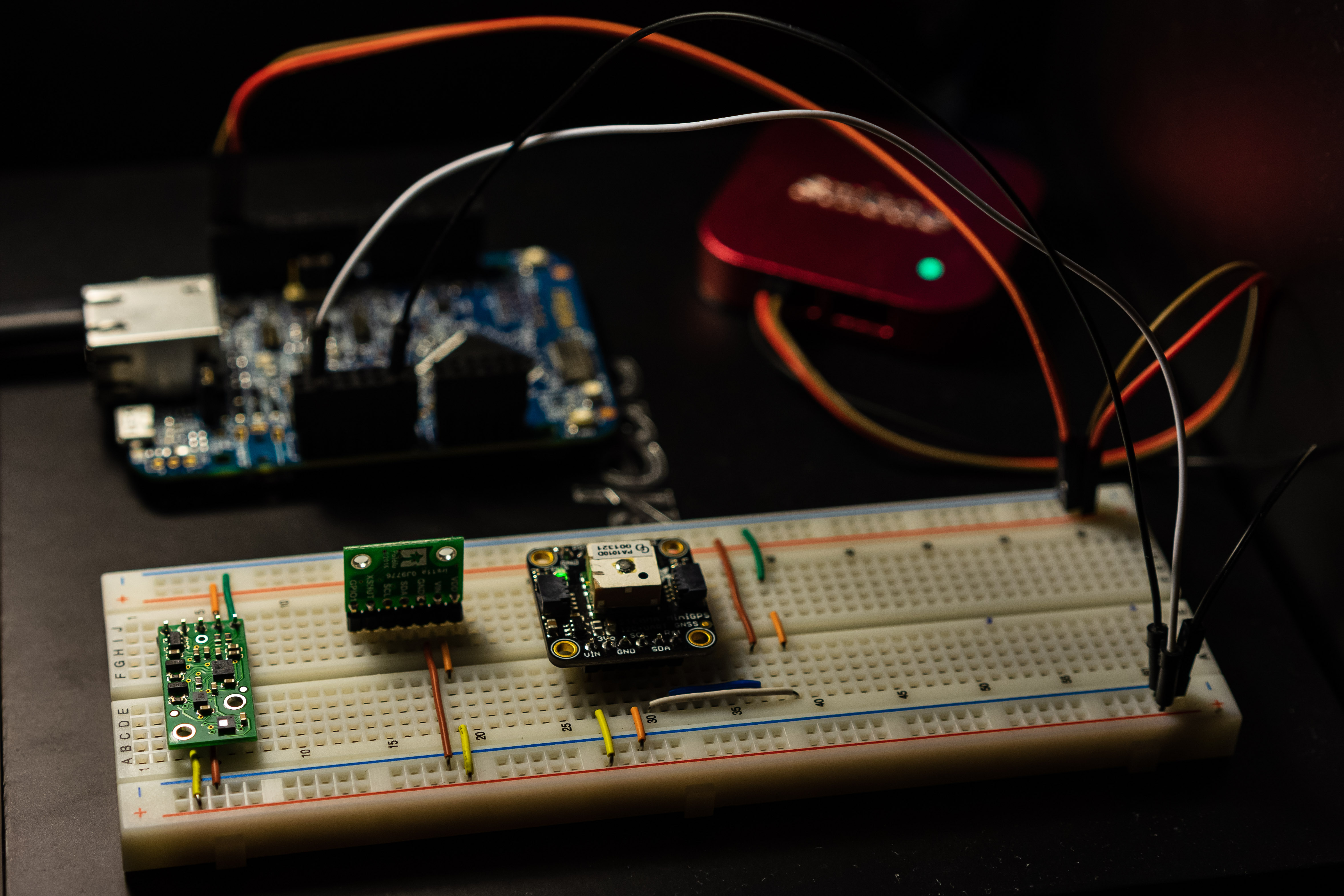

I worked in a team of six engineers to design a low-cost and effective autonomous search and rescue drone. From our benchmarking, we found that many existing solutions involve drones that cost thousands of dollars with limited flight time. Our goal was to produce a drone for less than a thousand dollars with a sufficiently long flight time. I managed the sensor, mechanical control, and electrical subsystems. For the sensor subsystem, I designed a simple HAL that allowed for communication with the accelerometer, magnetometer, gyroscope, barometer, and GPS. A similar HAL was designed for the mechanical control subsystem to interface with the ESCs and servos. The use of the abstraction layer expedited development of interfaces to these external components. For the electrical subsystem, a PCB was then designed to distribute power and signals between the various components and development boards. Finally, I was responsible for the integration of the sensor, mechanical control, electrical, and kernel subsystems during final assembly. Although the drone never took off, this project provided an excellent opportunity to learn and practice engineering concepts.

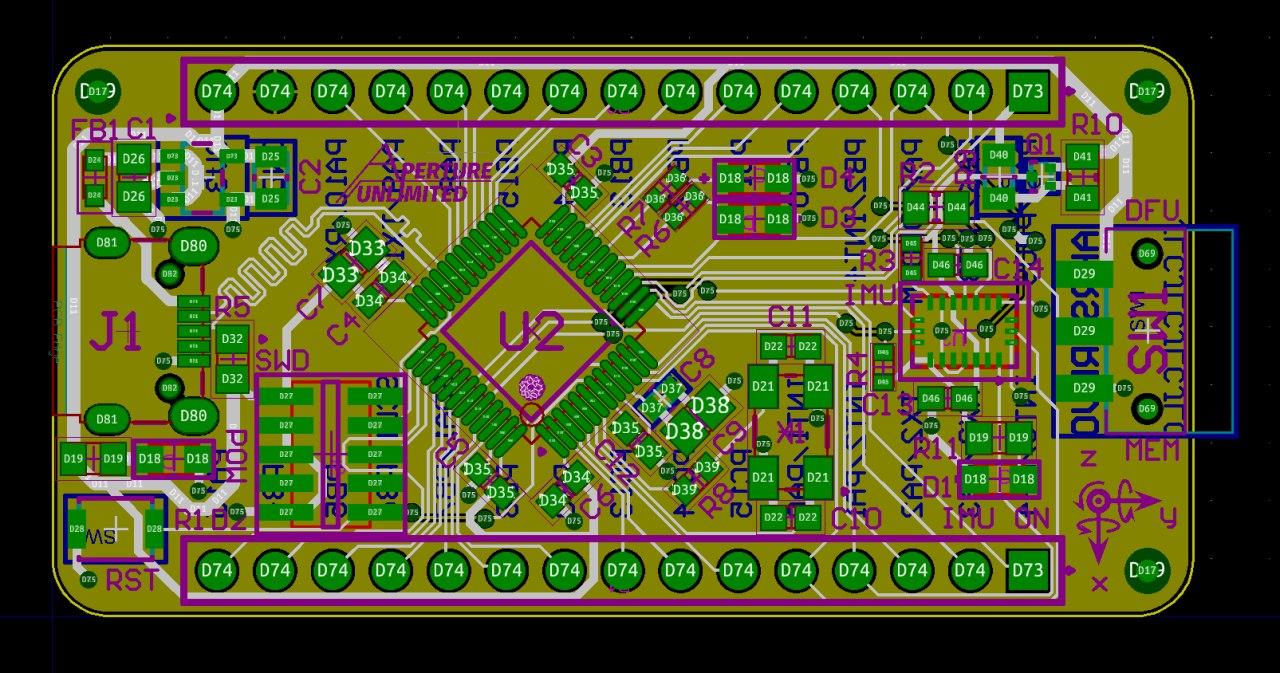

An AHRS is responsible for processing raw IMU data into attitude information. During my senior design project (Autonomous Search and Rescue Drones), a major challenge was the cost of processing raw sensor data and sensor fusion. My goal was to create a device that was affordable and able to offload complex computations away from a central processor. As a result, I designed and fabricated a two layer PCB that interfaces with a Bosch BMX055 9-DoF IMU with an ARM Cortex-M4 microcontroller---my first serious PCB. To accomplish this, I researched PCB design best practices and learned about surface mount soldering. To my surprise, after fixing a bit of solder that did not reflow properly, the fabricated board had no electrical issues. I am currently working on board bring-up. At this point, I have designed a basic HAL, initialized the clock to use the external oscillator, and have been able to communicate with the IMU. Currently, I am working on designing a more complex debug interface and writing drivers to read from the IMU. In the future, I plan on implementing a Kalman filter for sensor fusion.

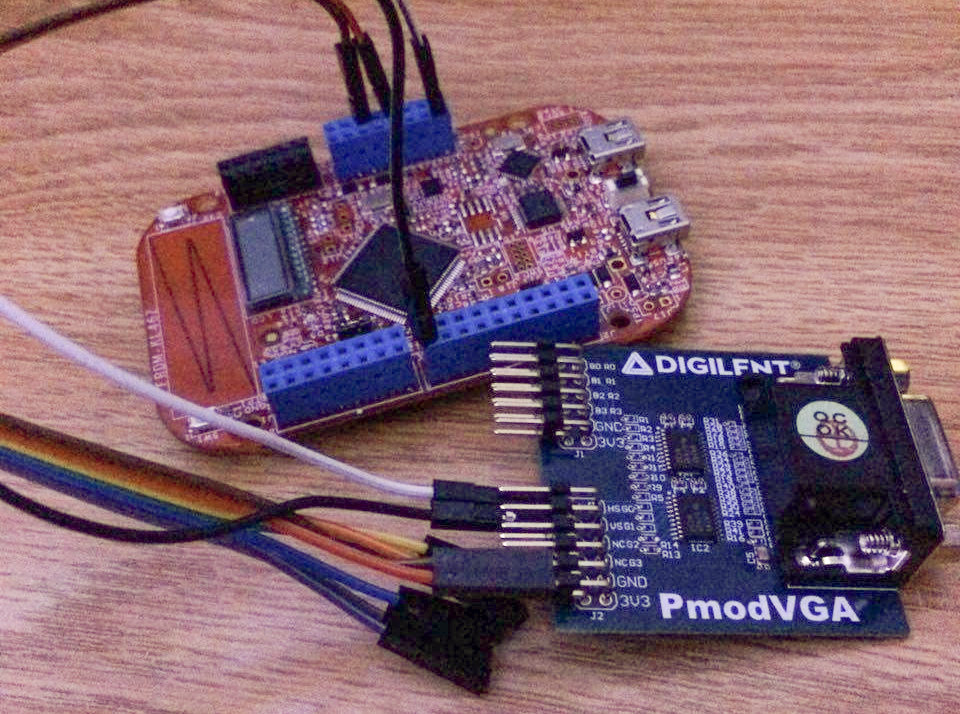

This project happened in my second year of college. A friend and I wanted to do something challenging and fun for the final project of our Assembly Language Programming class. At the time, there were many things we did not know about (such as interrupt latency). We studied the VGA specification and made note of the vsync and hsync pulses required to specify timing to the monitor. To generate these pulses, we used the TPM (Timer PWM Module) on the Kinetis KL46 MCU and bitbanged the color signals to the DAC included on the VGA adapter. In the end, we were never able to sync the signals using interrupts and instead used thousands of the no-op instructions to manually time the signals. We were able to successfully display a solid color to the screen.

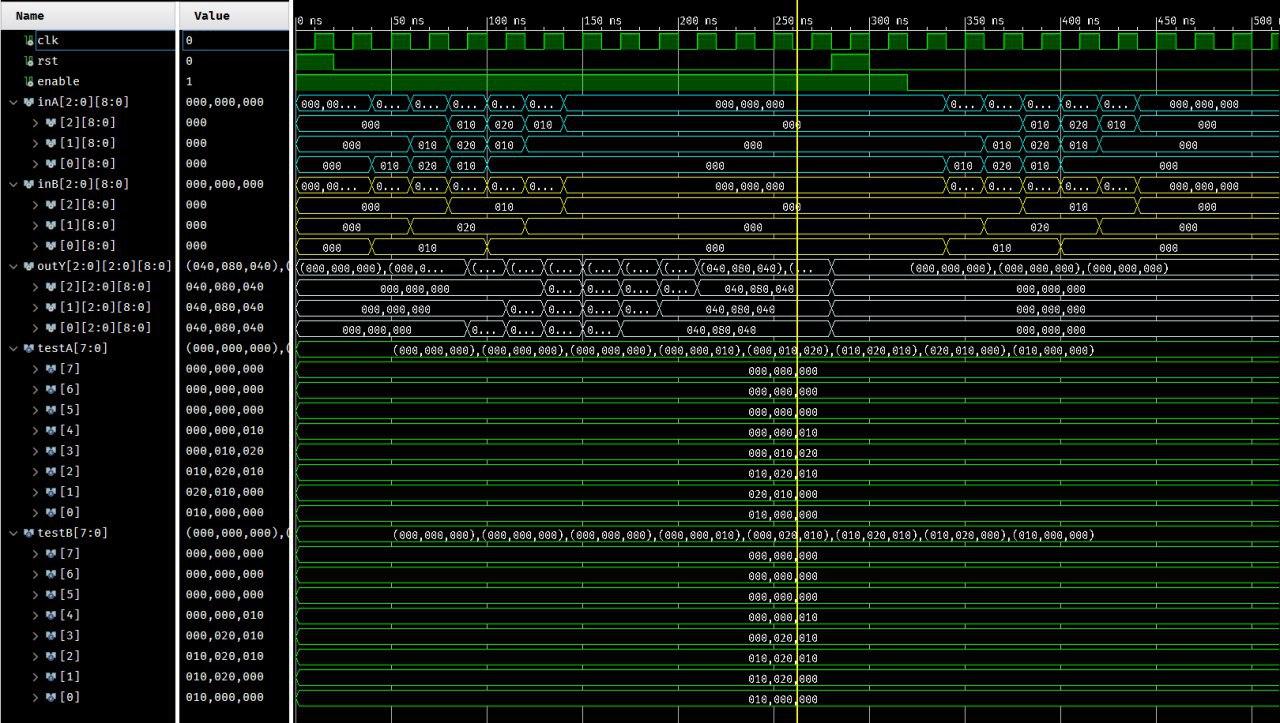

This accelerator was my part of a larger project to design and implement a VLSI Layout of a neural network accelerator tuned for image edge detection. Systolic arrays allow for complex computations to be pipelined in multiple dimensions through a grid of compute elements. The choice of systolic arrays to perform the matrix multiplcations allowed for a more efficient use of area over fully parallel designs. Efficient use of area allows for a reduction in the complexity of routing the layout. The implemented systolic array featured memory mapped input/output, a data fabric to deliver data, and multiply accumulate compute elements. The systolic array was able to complete a matrix multiplcation in a matter of clock cycles.

Knowing close to nothing about web development, I decided to learn some! Through the process of making this portfolio, I learned a lot more about how web technology works. Here we have my portfolio; where I used Hugo, HTML, CSS, and some Javascript to make what you are seeing right now.

Over the years, I have accumulated quite a few projects. Examples are a hamming code demo (C), an artificial neural network implementation with backpropagation (C), a spiking neural network implementation (Pytorch), and audio generation using an FPGA (VHDL). I will continue to post more projects that I deem worthy here, but feel free to contact me about any of the above!
